**NEW** Jenix digital readout system

The complete system includes display, scales and all mounting hardware:

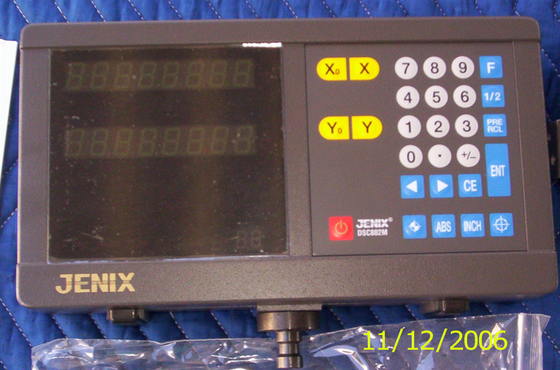

Model DSC-802M two axis display

Black Jenix control panel with digital display and keypad, showing yellow labels and blue buttons

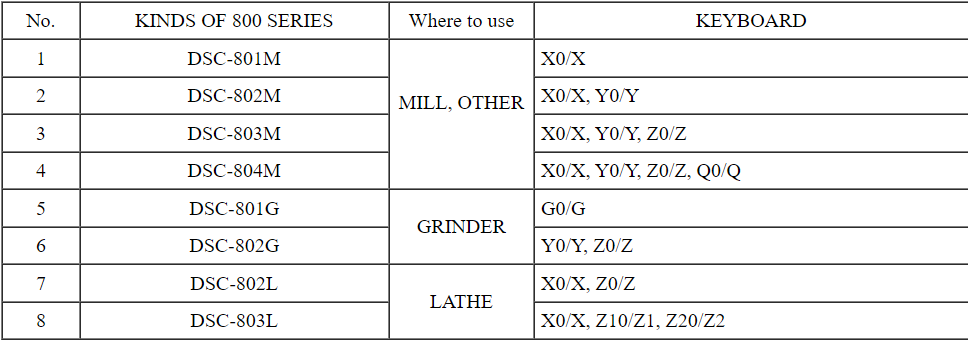

Table listing machine IDs and keywords, with columns for machine type and related codes.

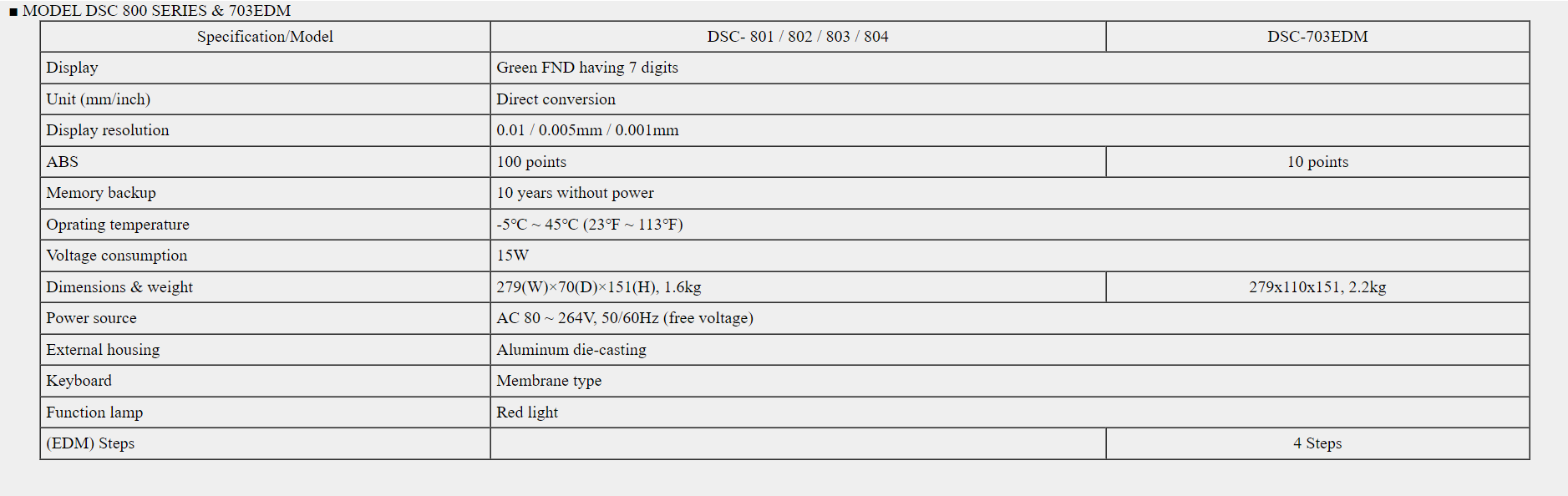

The specifications for the display is below:

- TECHNICAL SPECIFICATION -

 ■ MODEL DSC 800 SERIES & 703EDM

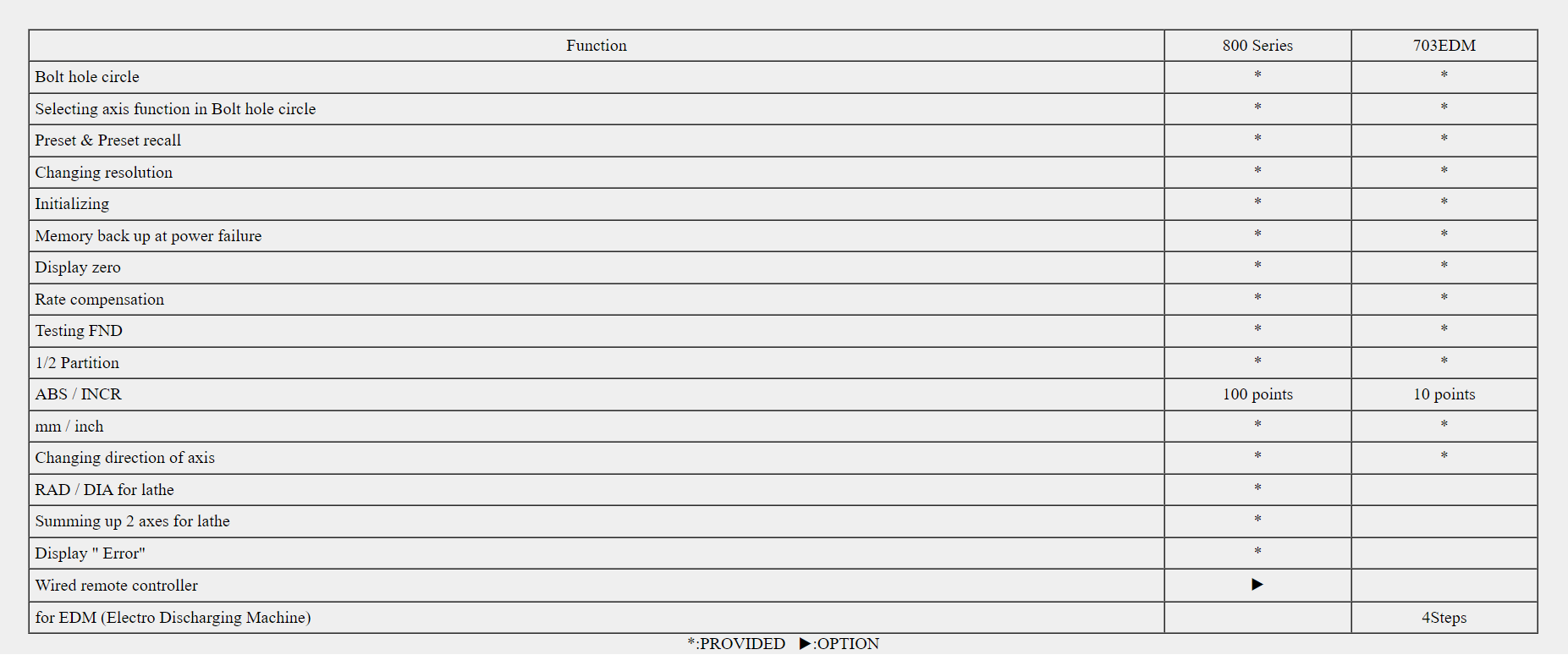

Blurry photo of a black-and-white form or table with multiple rows and columns of text.
Blurred spreadsheet-style table with rows, columns, and numeric entries on a white background

DIGITAL READOUT

● Bolt hole circle

Since up to 10,000 holes can be made along the circumference of the basic circle, it increases efficiency of works and production in working for molds and processing parts.

● ABS/INC

Incremental machining (zero approaching) can be used anytime by presetting the coordinate of each axis without error. In absolute positioning, JENIX counter can be saved 100 coordinates to memory.

● Counting direction conversion

Moving direction can be converted, (+) or (-) value can be selectable.

● Preset & preset recall

It makes your working more convenient with easy operation to preset data and recall it.

● Summing up 2 axes' values

This can be used to sum up two feed values, the summed value displays at on Y-axis displaying panel.

● Memory back-up

By the battery built inside a counter, pre-saved data are preserved even when the power is off.


Download scale and display mounting pictures and drawings:

Jenix Mount Hardware Drawings. zip
Teal “LINEAR SCALE” progress bar with a small white circular handle near the left.
Chart showing several horizontal machine bars with labels and a hand, comparing sizes and ranges
Blurry table showing electrolytes, mmol, and examples in a three-column chart.

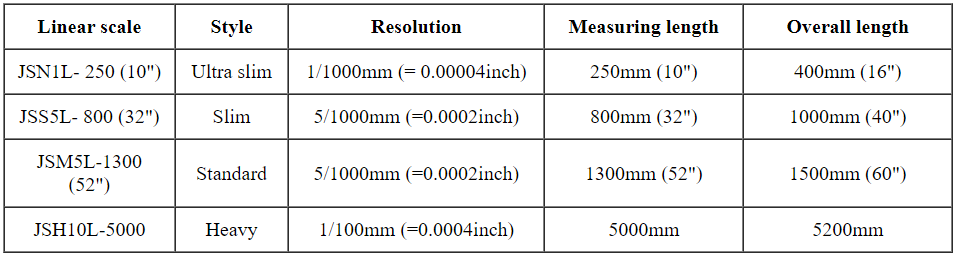

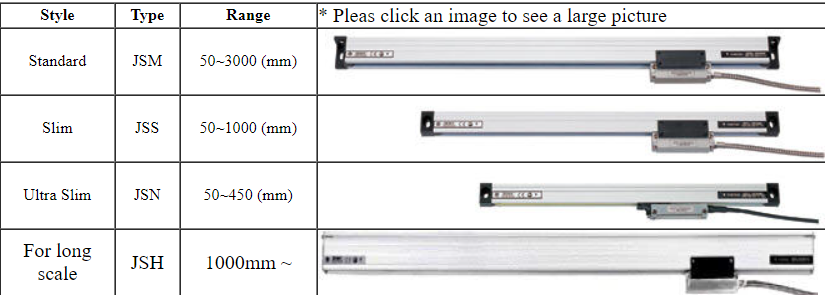

Table comparing liner scales, styles, rotation, measuring length, and overall length values.

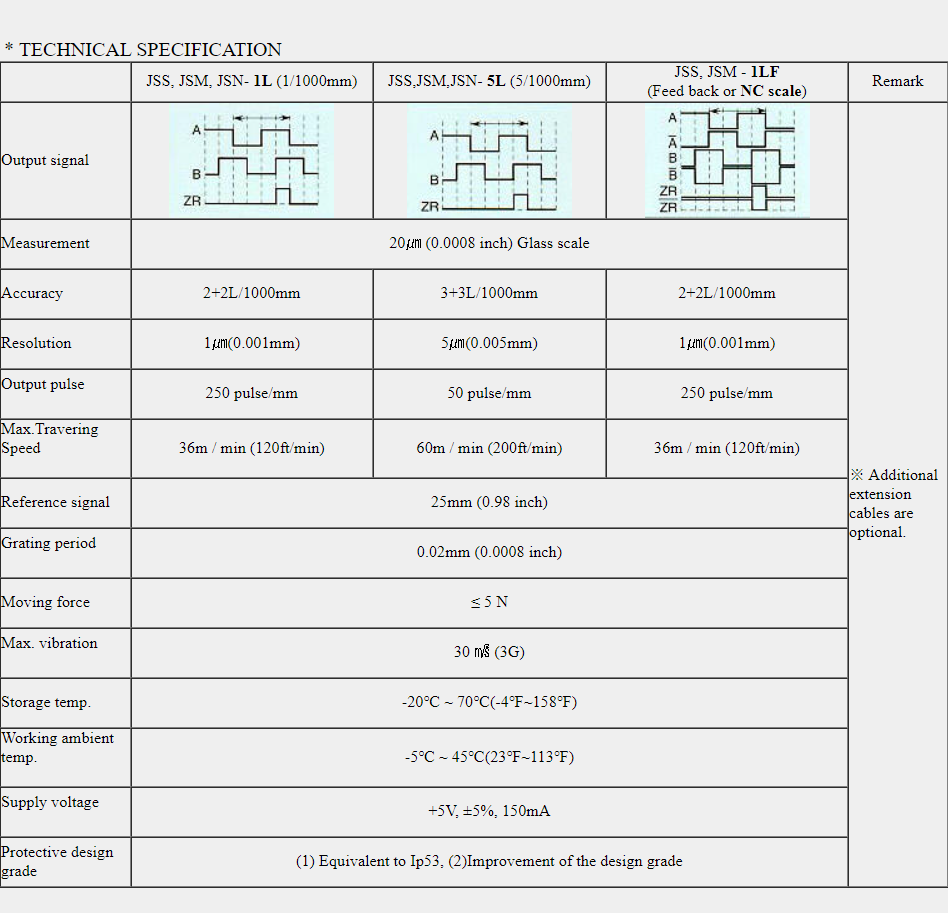

Technical specification table with waveform diagrams and electrical measurement columns.

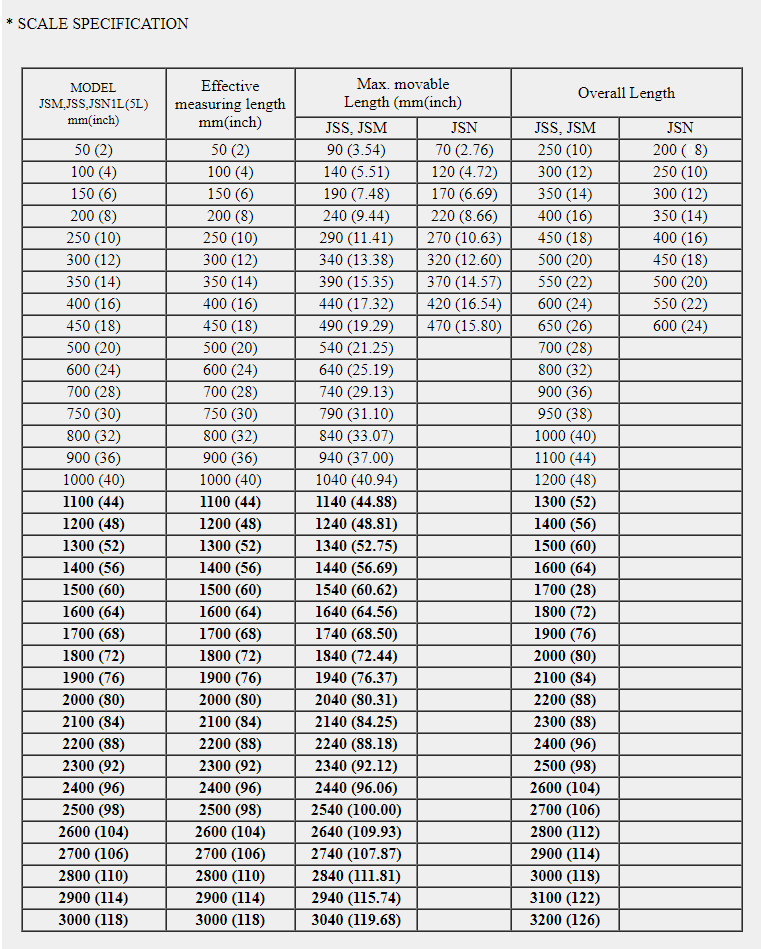

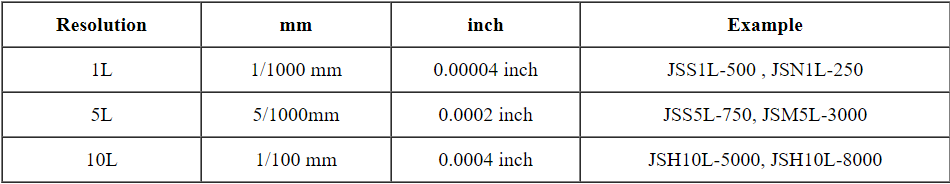

Blurry table of small text with multiple columns and rows, likely a scale conversion chart.

* Bold typed characters are all JSM (Standard) style

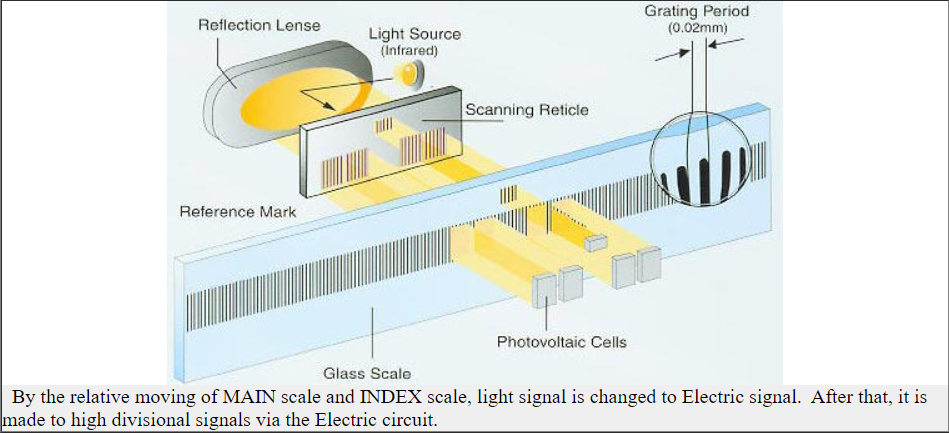

Labeled diagram of a fluorescent lamp, reflector, and phosphor-coated cylinder with light paths illustrated

The package also includes the following:

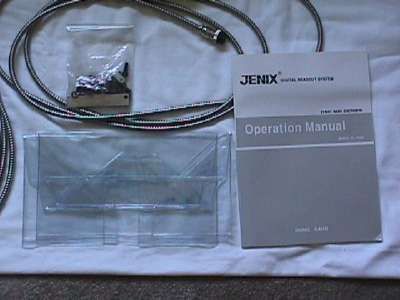

Jenix operation manual, coiled cable, small bag, and clear plastic case on a white surface
  • manual,
  • display cover and mounting arm
  • and scale mounting hardware and covers.

Installation:

  • The 12 x 30 system can be retrofitted on a Bridgeport Series I (9x42) machine or the import copies. The brackets could be modified to work on other machines.


  • The 12 x 30 x  system can be retrofitted on a Bridgeport Series I (9x42) machine or the import copies. The brackets could be modified to work on other machines.


  • The 16 x 36 system can be retrofitted on a Lagun (10x54) machine or the import copies. The brackets could be modified to work on other machines. (The 54" table normally takes a 36" scale)


  • The 12 x 24 system can be retrofitted on a Bridgeport Series I (9x38) machine or the import copies. The brackets could be modified to work on other machines.


  • The 10 x 20 system can be retrofitted on a RF Drill/mill machines or the other copies. The brackets could be modified to work on other machines.


  • The 10 x 40 system can be retrofitted on a lathe machine. The brackets could be modified to work on other machines.

WARRANTY:

System comes with a 6 year Mfg. warranty.

The system is is imported, sold and serviced by our company, Linear Measuring Systems Company here in California.

Regular package pricing starting at: $595.00


Call us with your order at 714-386-5725


Other sizes are available from 2" to 120", please call for a quote.
