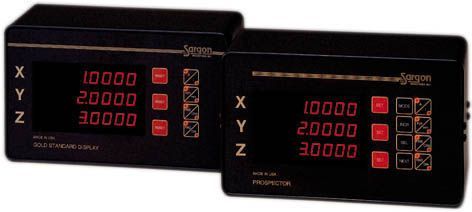

*NEW** Jenix digital readout display to replace your
Sargon, Acu-rite, Anilam or QMS display.
We do have a very limited supply Sargon display, scale or encoder parts.
Sargon went out of business completely in August of 2005 so new parts are not available. This is why we are offering theses new displays and scales to retrofit to your existing dro system.
If are looking for manual please click on the following link to go to the Sargon support page:
http://www.sargon-dro.net/support.html
Model DSC-802M two axis display for Mills
or
Model DSC-802L two axis display for Lathes
with Sargon connector adapters (2)
$295.00*
Scales are not included in the above price.
Model DSC-803M three axis display for Mills
with Sargon connector adapters (3)
$395.00*
Scales are not included in the above price.
Model DSC-804M four axis display for Mills
with Sargon connector adapters (4)
$495.00*
Scales are not included in the above price.
Have a display and need a replacement scale?
Call or e-mail us with the details of what you need and we will quote you a price.
All display orders must come with adapters.
Display Detail:
Display: Green F.N.D 7 digits with "-" sign
Operation temperature: -5℃ ~ 45℃
Voltage consumption: 15VA
Power source: AC 50 ~ 265V, 50/60Hz (free voltage)
Key pad: Membrane Type
Function Display: RED LED
Here are the features that are available in the display:
Bolt Hole Calculation Preset for each axis
Reset for each axis 1/2 divide for finding the centerline
Inch/millimeter conversion Reference mark
add/subtract function absolute/incremental positioning
Data memory: 50 positions per axis Memory back up
Radius/Diameter Switchable Green L.E.D.s
Die cast housing
Resolution:
10um/.0005" (Fits Sargon, Acu-rite, Anilam and Quality Measurement Systems scales)
5um/.0002"
1um/.00005"
The display also includes the following:
manual
display cover
2, 3 or 4 adapters
The replacement scales are Jenix Model JSN, JSS or JSM moel scales
The scales are high precision glass scales.
They are not some flimsy rod that has not been checked for accuracy with a laser!
We show a actual picture of our scale not a drawing like our competition.
You can see what you are getting from us.
The specifications of the scales are below:
Resolution: 5um(0.005mm).0002 inch Output Waveform: SQUARE WAVE
Standard cable length: 3 Meter (about 9 feet) Operation temperature: -5c ~ 45c
DC Supply: +5V
Item that is not available:
1) The adapters are not available to purchase separately. You must purchase a display or scale to receive a adapter.
The following scales are not compatible with the scales and displays I am selling:
Heidenhain - They make to may different scales with to many different signals and connectors.
RSF - They make to may different scales with to many different signals and connectors.
Tri-onics - they are out of the dro business and I don't have the technical data to make the adapters.
Futaba -They use a 15 volt system which 10 volts higher than the Jenix.
Teledyne Gurley - Gurley Precision - I don't have the technical data to make the adapters.
Newall - They use a different scale signal.
Sony - They use a different scale signal.
Sokki - They use a different scale signal and they are no longer in business.
Textron - Bridgeport By Textron - They use a different scale signal.
We can offer a generous discount on a complete system if you want to trade in your current system - working or not!
Call for more details - 714-386-5725
WARRANTY:
30 day money back guarantee.
Display and scales comes with a 6 year warranty.
